358 Mesh Welded Wire High Security Fence


358 Mesh Structure High Security Fencing Systerm
is well known in the world as an anti-climb & anti-cut

through barrier. It provides the lowest level of visual impact to the surroundings, this fuction enables it suitable for traffic security fencing, prison fencing and secure units and military uses.

The welded mesh panels are welded with high quality carbon steel wires. It is designed to give attractive,

long lasting and secure perimeter protection for industrial and commercial properties, public utilities,

and it is really suited for electronic alarm and detection systems - no blind spots.

High security fence has the close mesh structure which makes it virtually impossible to climb. The close mesh also means that the fence is very difficult to cut with anything but power tools. The panels are covered by a continuous heavy weight clamp bar, which offers no place for leverage to prise it off. The system also has no removable fixings meaning that panels cannot be removed by would be intruders. This system has good through visibility and is also aesthetically pleasing.



Pvc coated anti-climb 358 mesh fencing:
Material: Plastic Coated Iron Wire; Hot Dipped Galvanized Low-Carbon Iron Wire

Size One: Aperture: 3/4" 1/2'' 1'';1/4''-8''

Wire Gauge: 0.25-8mm

Size Two:

Aperture: 12.7*72.6mm

Wire Gauge: 3.0-4.0mm



358 Mesh Panels Types:

Panel-Type A(2D View)

Mesh  Wire Thickness Surface Treatment Panel Width Height
76.2x12.7mm Horizontal wire:3.0, 3.5, 4.0mm
Vertical wire :4.0mm
Galvanized and
Electrostatic polyester coated or Hot dipped galvanized
2.50m
Or 2.20m
1800mm
2000mm
2100mm
2200mm
2400mm
2500mm
3000mm

*Weld strength: - 75% of the minimum tensile strength of the wire; Tensile range 540-690 N/m2



 Panel-Type B(3D View)

 Mesh  Wire Thickness Surface Treatment Folds NOS Panel Width Height
76.2x12.7mm Horizontal wire:3.0, 3.5, 4.0mm
Vertical wire :4.0mm
Galvanized and
Electrostatic polyester coated or Hot dipped galvanized
3 2.50m
Or 2.20m
1800mm
3 2000mm
4 2100mm
4 2200mm
4 2400mm
5 2500mm
6 3000mm

*Weld strength: - 75% of the minimum tensile strength of the wire; Tensile range 540-690 N/m2

Panel-Type C(2D View, adding wire)

 Mesh  Wire Thickness Surface Treatment Panel Width Height
100x15mm Horizontal wire:3.5mm Vertical wire :5.5mm  Galvanized and
Electrostatic polyester coated or Hot dipped galvanized
2.50m
Or 2.20m
1800mm
2000mm
2100mm
2200mm
2400mm
2500mm
3000mm

*With additional horizontal wire of 3.5mm at 18.00cm intervals
*Weld strength: - 75% of the minimum tensile strength of the wire, Tensile range 540-690 N/m2

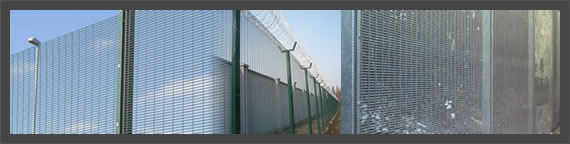

Welded 358 Mesh Panels



Anti-Climbing Security Mesh Fences
