Aluminium Highway Noise Barrier

Aluminium noise barrier is designed to use in the acoustic environment of highway, expressway, railway or roadside to reduce the traffic noise. The metal aluminum structure built in with fabrics or fibers offers excellent noise absorption, fire retardant property and wind loading property. We offer reliable aluminium perforated sheet solution for Architectural and Highway, Expressway and City Constructional Noise Control Projects. The noise barrier panels can be installed along the guardrails to form a dual system reducing wind and noise at the same time ensuring highway traffic safety.

Aluminum Highway Noise Barrier is composed of alloy frame, perforated plate, built-in absorbent cotton, H post and flange plate.. Suitable for sound insulation and noise reduction for High-speed Rail, highway, municipal, rail transportation.

Sound transmission loss ≥ 30 dB;
Noise reduction coefficient ≥ 0.7;
Fire resistance class E.

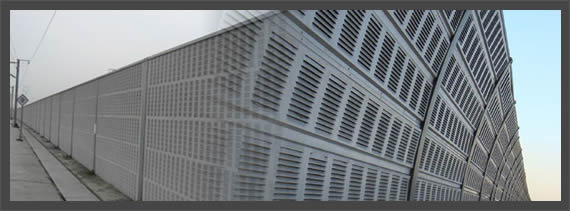

Perforated Aluminum Highway Barrier
Technical Information:
Noise barrier 54db
Fire retardant above 3 hours
Material: aluminum sheet.
Aluminum sheet type: Shutter type, perforated type.
Colors: Clear, lake blue, green, blue, opal, brown, silvery gray, red.

Other color can be ordered according to you request.
Transparent sheet: PC, PMMA.



Metal Perforated Aluminum Sheet:

Panel height: 0.5m ,1.0m.

Panel length: 2.0m, 2.5m, 3.0m, 4.0m.

Sheet thickness: 80mm,100mm,120mm.





Sound Barrier Common Sizes:



Total height : 3.0m as standard.

Length: 2.0m ,2.5m, 3.0m, 4.0m.

RW: ≥30dB.

NRC: ≥0.84





Aluminium profile requirement

Item

Original Product

Alternatives

Shape

Irregular

Round,Square,Triangle,Rectangle etc...and Customized shapes are welcome.

Alloy

6061 alloy

6063,6061 Alloy etc.

Temper

T6

T3,T4,T5,T6,T8 can be discussed.

Finishing

Powder coating

(Akzo Nobel application)

Mill finish, Anodized, Electrophoresis, Powder coating,Panting,Sliver matt, Sand blasting,PVDF,Silkscreening etc.



Material  Width Length Thickness
Acrylic board :PE  PMMA resinFrame material : Aluminum Alloy 100mm-1500mm 2000-2500mm 8mm-10mm
Frame: 70mm-100mm
 Metal sheet :aluminiun steet or galvanized steel sheet Inner Material:Glass wool  500mm-1000mm  2000mm-4000mm   70mm-100mm

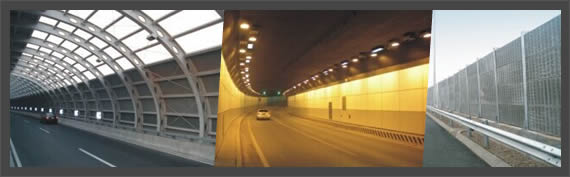

Loop Road Sound Proof Barrier



Aluminum panel thickness: 80mm, 100mm,120mm, 150mm etc

Sound barrier plate thickness: 1-2mm

H-post: 100x100x6x8mm, 125x125x6.5x9mm, 150x150x7x10mm, 175x175x7.5x11mm.
Sound barrier flange plate: 250x250x10, 300x300x10, 350x350x10, 400x400x10mm etc.

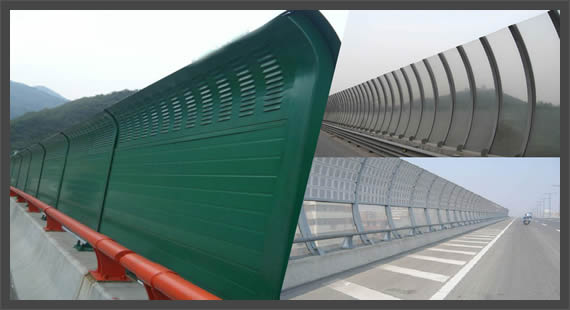

Aluminum Sound Barrier Installed on Steel Guardrail Bases

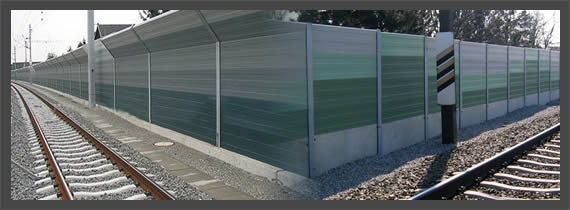

Aluminum Railway Sound Proof Noise Barrier Panel Cells

Our advantages include:
Reliable quality (ISO9001:2008 & TS16949:2002 certified).
Competitive prices with short lead-time for both tooling and parts, because we do everything in-house.

Effective and strong technical support and excellent sales services.
Sufficient production capacity (only 65% occupied).
Efficient communication (48-hour quote lead time).

Compliant with RoHS Test.
