ShandaSound Proof Screen Panels Barrier Engineering

Fabric Wrapped Metal Plate Wall Acoustic Fencing

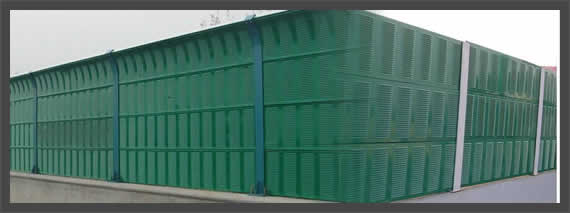

Sound Barrier Wall Acoustic Fencing


Higway sound barrier wall panels are made of metal plates or non metal economic PC sheets. The plates are use together with sound insulation materials to achieve enhanced noise reduction effect. The acoustic walls uses metal and non metal plates wrapped with fire resistant polyester wool or fabrics.

Specifications:

Thickness: 6 to 16mm
Maximum width: 2,100mm
Length: any dimension
Specific gravity: 1200kg/cbm
sound walls fences Colors: clear, blue, green, opal, brown,bronze,etc.

Wall Acoustic Fencing Technical Features:

Impact strength: 850J/m ,the impact strength of solid PC sheets is 250 times
that of glass, 20-30 times of PMMA sheet
Light transmission: 80%-90% for different thickness of clear color
UV resistance:with our 50μm thickness UV layer ,the sheet can filter 99% ultraviolet radiation in sunlight
Specific gravity: 1.2 g/cm
Coefficient of thermal expansion: 0.065 mm/moC
Temperature: -40oC to 120oC
Heat conductivity: 2.3-3.9 W/m2 oC
Tensile strength: >60N/mm2
Flexural strength: 100N/mm2
Modulus of elasticity: 2,400mPa
Tensile street at break: >65mPa
Elongation at break: >100%
Specific heat: 1.16J/kgk
Heat deflection temperature: 140oC
Soundproof index:6mm--29dB,8mm--31dB,10mm-32dB 12mm--34dB



Structure: Base Material, Surface & Back Surface;
Basic Material: Eco-friendly Polyester Wool;
Front Finish: PVC or Waterproof Canvas;
Back Finish: Fiberglass fabric;
Standard Size: 2400*1000mm;
Standard Thickness: 14/18mm;
Standard Pattern: 3 layer, 4 layer;
Acoustic Principle: Both Sound Absorption & Sound insulation;
Eco-Friendly :Polyester wool;
Fire Resistance: Fiberglass fabric.

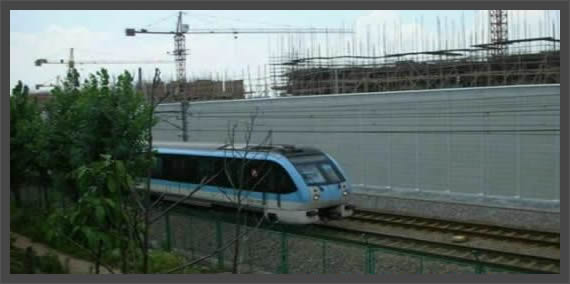

Railway Sound Barrier Fence
