Shanda supplies Razor Wire Based High Security Fencing Products: Razor Wire Coils/ Ribbions/ Tapes, Welded Razor Mesh Panels, Mobile Razor Wire Security Fencing Barrier.

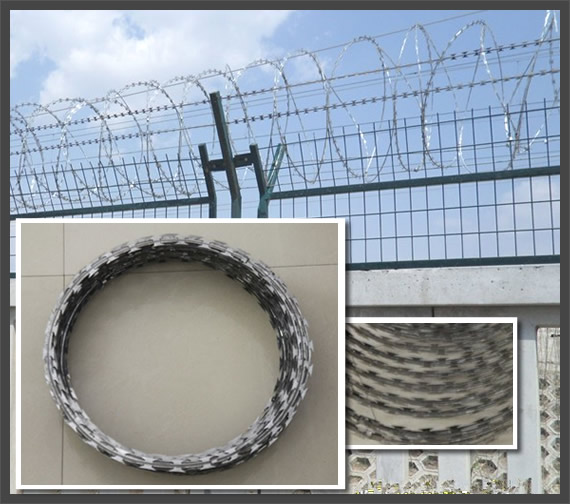

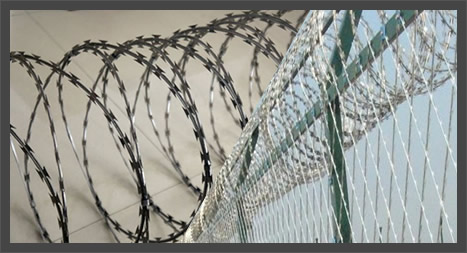

Razor Wire Coils for Topping of High Security Mesh Fence System
It is a modern type of protective and security products usually used on the top of Y shape posts and fences to protect fields, highways, railways, sports, grounds, and militay border, prision wallhighgrade residential area, warehouse, prisons, border military area and other important need blockade around the forbidden place. The razor blades can be installed along the mesh fences to form a High Level Security Barrier for highway, airport, military areas and other zones forbidding intruders.
Material: Low carbon iron wire, stainless steel, galvanized wirre, pvc coated wire.
Protection Methods: single concertina razor coils, crossed concertina razor coils.
| Razor blade type and speciafication | |||||
| reference number | thickness (mm) | wire diameter (mm) | barb length (mm) | barb width (mm) | barb spacing (mm) |
| BTO-12 | 0.4 ± 0.05 | 2.5 ± 0.1 | 12 ± 1 | 15 ± 1 | 26 ± 1 |
| BTO-15 | 0.4 ± 0.05 | 2.5 ± 0.1 | 15 ± 1 | 15 ± 1 | 33 ± 1 |
| BTO-22 | 0.4 ± 0.05 | 2.5 ± 0.1 | 22 ± 1 | 15 ± 1 | 34 ± 1 |
| BTO-30 | 0.4 ± 0.05 | 2.5 ± 0.1 | 30 ± 1 | 18 ± 1 | 45 ± 1 |
| BTO-25 | 0.4 ± 0.05 | 2.5 ± 0.1 | 25 ± 1 | 16 ± 1 | 40 ± 1 |
| BTO-60 | 0.5 ± 0.05 | 2.5 ± 0.1 | 60 ± 2 | 32 ± 1 | 100 ± 2 |
| BTO-65 | 0.5 ± 0.05 | 2.5 ± 0.1 | 65 ± 2 | 21 ± 1 | 100 ± 2 |
| outside diameter | No. of loops | standard length per coil | type | notes |
| 300mm | 33 | 4-6m | CBT-65 | Single coil |
| 450mm | 33 | 7-8m | CBT-65 | Single coil |
| 500mm | 56 | 12-13m | CBT-65 | Single coil |
| 700mm | 56 | 13-14m | CBT-65 | Single coil |
| 960mm | 56 | 14-15m | CBT-65 | Single coil |
| 450mm | 56 | 8-9m (3 clips) | BTO-10. 12. 18. 22. 28. 30 | Cross type |
| 500mm | 56 | 9-10m(3 clips) | BTO-10. 12. 18. 22. 28. 30 | Cross type |
| 600mm | 56 | 10-11m(3 clips) | BTO-10. 12. 18. 22. 28. 30 | Cross type |
| 600mm | 56 | 8-10m(5 clips) | BTO-10. 12. 18. 22. 28. 30 | Cross type |
| 700mm | 56 | 10-12m(5 clips) | BTO-10. 12. 18. 22. 28. 30 | Cross type |
| 800mm | 56 | 11-13m(5 clips) | BTO-10. 12. 18. 22. 28. 30 | Cross type |
| 900mm | 56 | 12-14m(5 clips) | BTO-10. 12. 18. 22. 28. 30 | Cross type |
| 960mm | 56 | 13-15m(5 clips) | BTO-10. 12. 18. 22. 28. 30 | Cross type |
| 980mm | 56 | 14-16m(5 clips) | BTO-10. 12. 18. 22. 28. 30 | Cross type |

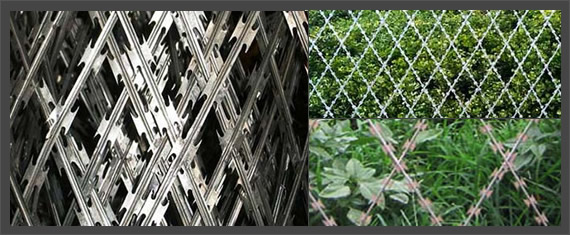

Welded Razor Mesh Panels High Security Fencing:
We also supply high security fencing panels made by welding of razor wire lines. The welded razor wire it self offers anti-cutting and anti-climbing barrier.
1. Wire diameter: Horizontal 6mmX2 +Vertical 5mmX1.
2. Hole/Mesh: 50X200mm.
3. Post: 60X60mm Xthickness 1.5mm.
4. Fence panel: height 1600 X length 2500mm.
5. Post height: 2100mm (remain 500mm under the ground).
Specification Lists of Welded Razor Mesh High Security Fencing:
| Mesh size | 100mm x 50mm |
| Width | 2506mm |
| Height | 630mm to 2430mm and 3030mm in 400mm increments |
| Horizontal wires | 5.0mm |
| Vertical wires | razor wire |
| Spike to top edg e | 0mm |
Fastenings:
The Panels and posts are jointed together with bolts or rivets, using the steel flat bar, or special steel clamps, all nuts are self-locking. This also can be designed as the special clients requests.
Application:
Schools,
Recreation Area,
Commercial Site,
Industrial Estates,
Sports Grounds.
Mobile Razor Wire Security Barrier
Mobile Security Barriers is one of the specially designed equipment used by police to secure, protect a place or location of the demonstrators or rioters who try to enter /penetrate the defense in order to reduce physical contact between demonstrators and police officers.
Mobile Barriers Structure:
One Set of Mobile Security Barrier Complete unit includes a towing vehicle and atrailer unit (Caravan) which contains 4 pieces of wire module with a length of 150meters barrier consists of 3 pieces of the module with a length of wire barrier @ 40meters and 1 module with a length of wire barrier 30 meters.
Dimension / size of standard barbed wire barricades:
1) Diameter of coil: 700 mm or 900mm
2) The length of the barricade minimum: 120 meters (3 x @ 40 m)
3) The width of the barricade: 1.4 to 1.5 m
4) High barricades: 1.5 to 1.7 m
5) barbed wire Diameter: 2.4 to 2.6 mm
6) The distance between spines: 12 - 50 mm
7) The width of spines: 12 - 15 mm
8) High spines: 6 - 7.5 mm
9) Type / Thickness of thorns: Ripper Coil / 0.45 to 0.5 mm
10) The number of spirals: 55 of each coil (each 10 meters)
11) Number of clips: 5 each spiral
12) Equipped with sling stopper wire diameter of 5 mm
13)The coated layer of galvanized / Zeng :135-145 g /m²
Common specification:
Dimension of vehicle:2190mm(W) X 4700mm(L) X 2220mm(H), one vehicle(with barbed wire) Vehicle net weight(without wire) : Around 2150kgs
Hot dipped galvanized steel for lower vehicle body, reinforce protection and anti-rust. Adjustable front supporting tire, adjustable pulling rod.
